Configure Gateway Wireless Controller Settings
The Gateway Wireless Controller includes settings that apply to all APs. These settings include:
- AP passphrase
- Firmware updates
- Syslog server settings
- Alarms and notification settings
- Communication VLAN tagging
- Discovery Broadcasts
- Scan Interval
- Reboot Schedule
- MAC Access Control
Configure Access Point Settings
You can configure the Access Point settings in the Gateway Wireless Controller.
![Closed](../../../Skins/Default/Stylesheets/Images/transparent.gif)

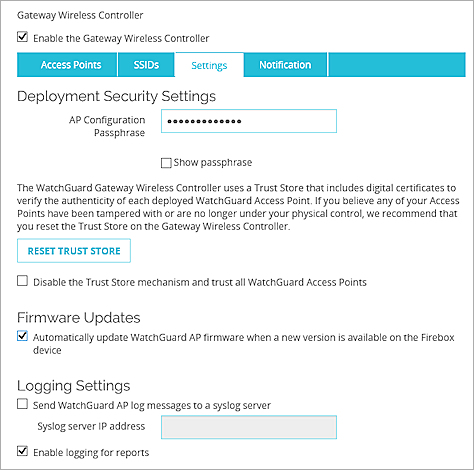

- Select Network > Gateway Wireless Controller.
The Gateway Wireless Controller page appears. - Select the Settings tab.
The Settings page appears.
- Configure the Access Point settings, as described in the next sections.
- Click Save.
![Closed](../../../Skins/Default/Stylesheets/Images/transparent.gif)

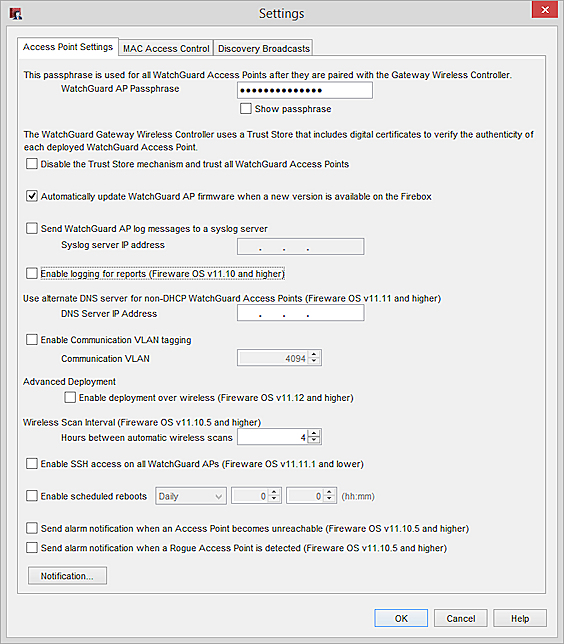

- Select Network > Gateway Wireless Controller.
The Gateway Wireless Controller dialog box appears. - Click Settings.
The Settings dialog box appears.
- Configure the Access Point settings, as described in the next sections.
- Click OK.
- Save the configuration file to your Firebox.
AP Configuration Passphrase
The AP configuration passphrase is used for all WatchGuard APs after they are paired with your Firebox. The Gateway Wireless Controller uses this passphrase to establish connections between the Firebox and the paired APs. You set the passphrase when you enable the Gateway Wireless Controller.
To change the passphrase:
- In the AP Configuration Passphrase text box, type the passphrase to use for management of all APs.
The passphrase must be a minimum of 8 characters. - To see the passphrase you typed, select Show passphrase.
Automatic AP Passphrase Management
(Fireware v12.0.2 or lower)
The Gateway Wireless Controller can automatically create and manage unique, random passphrases for each AP. The automatically generated passphrase only changes if the AP is reset to factory-default settings.
Automatically generated AP passphrases cannot be restored. If data is lost on the Firebox that manages your APs, you might lose access to your APs. Automatic AP passphrase management is supported for FireClusters on Fireware v11.12.4 or higher.
To enable automatic passphrase management, clear the Use a manual global passphrase instead of automatically-generated unique passphrases for WatchGuard AP Devices check box to disable the manual passphrase.
To show the automatically generated passphrase for an AP, from the Gateway Wireless Controller Dashboard page or Firebox System Manager Gateway Wireless Controller tab:
- Select the Access Points tab.
- Select an AP.
- Click Action.
- Select Show Password.
Enable Automatic AP Firmware Updates
The Gateway Wireless Controller can automatically update the firmware on WatchGuard APs when a new version is available. The default setting enables the Gateway Wireless Controller to automatically update the firmware on all paired APs.
Automatic AP firmware upgrades occur from 00:00 (midnight) to 04:00 at the local time of the Firebox. If your Firebox is paired with more than one AP, the Gateway Wireless Controller automatically updates the APs one at a time. The Gateway Wireless Controller updates one AP every five minutes.
To disable automatic AP firmware updates:
Clear the Automatically update WatchGuard AP firmware when a new version is available on the Firebox device check box.
If you disable automatic firmware updates, you can manually update the firmware for each AP. For more information, see Update AP Firmware on the Gateway Wireless Controller.
Configure Syslog Settings
By default, each AP automatically stores recent syslog log messages locally. You can see the syslog messages stored on each AP. For more information about how to see syslog messages for an AP, see Monitor Wireless Connections (Gateway Wireless Controller)
You can also configure all your APs to send syslog messages to the same external syslog server. When you configure the syslog server in the Gateway Wireless Controller settings, all paired APs send syslog messages to the specified server.
External syslog support is not available for AP120, AP320, AP322, and AP420 devices.
Before you configure the Gateway Wireless Controller settings for an external syslog server, make sure the syslog server you specify is set up and your APs can connect to the IP address of the syslog server.
To configure your APs to send log messages to an external syslog server:
- Select the Send WatchGuard AP log messages to a syslog server check box.
- In the Syslog server IP address text box, type the IP address of the syslog server.
Enable Logging For Reports
Enable this option to generate log messages of wireless events for reports.
These events include:
- AP discovery
- AP status updates
- AP reboot, online, offline, pairing and unpairing events
- AP configuration changes
- AP firmware version updates
- Detection of rogue access points
Enable Communication VLAN Tagging
You can optionally use a tagged VLAN for management communications to the AP. You can enable VLAN tagging for each AP in the configuration for each AP, or you can enable it in the Gateway Wireless Controller settings. If you want to use the same communication VLAN ID for all paired access points, it might be most convenient to set the VLAN ID in the Gateway Wireless Controller settings.
If you enable communication VLAN tagging in the Gateway Wireless Controller settings, you do not need to enable communication VLAN tagging individually for each AP. The Firebox uses the communication VLAN ID specified in the Gateway Wireless Controller settings for management traffic to all APs, if communication VLAN tagging is not enabled in the AP settings.
To enable communication VLAN tagging for all APs:
- Select the Enable Communication VLAN Tagging check box.
- In the Communication VLAN ID text box, type the VLAN ID to use for management connections.
This must be a VLAN that is configured for tagged traffic to the interface your APs connect to.
If you specify a communication VLAN ID in the configuration settings for an AP, the Firebox uses the VLAN ID configured for the AP instead of the VLAN ID specified in the Gateway Wireless Controller settings.
Discovery Broadcasts
By default, the Gateway Wireless Controller uses a UDP broadcast on ports 2528 and 2529 on all networks to automatically discover connected APs and retrieve the current AP status.
The Gateway Wireless Controller cannot automatically discover an AP located somewhere on your network where it cannot receive the broadcast. In these types of deployments, you can instead connect to the AP to configure the network settings, and then add the AP to the Gateway Wireless Controller, with the same network settings.
For more information, see the manual AP configuration topic in Configure AP Settings.
You can limit the networks that you use for AP discovery broadcasts, and you can also disable automatic discovery broadcasts. This is useful if you use the automatic deployment feature and need control over the networks that will allow APs to be automatically deployed. For more information on automatic deployment, see About AP Automatic Deployment.
To limit your discovery broadcast addresses:
- Select Only discover WatchGuard AP devices on these broadcast IP addresses.
- Click Add and specify a broadcast IP address for the network to use to deploy WatchGuard APs.
You must add a valid broadcast address for your network.
For example, if your trusted interface is configured as 10.0.0.1/24, the broadcast IP address is 10.0.0.255.
To disable automatic discovery broadcasts:
- Select the Disable automatic discovery of WatchGuard AP devices check box.
- To manually discover unpaired APs, on the Gateway Wireless Controller Access Points page, click Refresh.
We recommend you do not disable discovery broadcasts in deployments where the IP address assigned to APs by DHCP can change (for example, non-fixed DHCP addresses). This can disrupt management communications between the APs and the Gateway Wireless Controller.
Advanced Deployment
(Fireware v12.0.2 or lower)
You can deploy AP300 devices over-the-air without a cable connection to your network. When the network cable is disconnected, the AP switches to client mode and associates to the nearest cabled AP.
To enable wireless deployment, select the Enable deployment over wireless check box.
For more detailed information, see About AP Wireless Deployment .
Wireless Scan Interval
You can configure the interval for automatic wireless scans for AP channel selection, wireless deployment maps, and rogue access point detection. The default is 4 hours.
To reduce wireless traffic and resource usage for wireless network scans you can increase the automatic scan interval.
Alarm Notifications
You can enable alarms to notify you when these wireless events occur:
- Send alarm notification when an Access Point cannot be contacted — An AP can be unexpectedly disconnected for many reasons, this includes network disruption or loss of power. Alarm notifications are not generated if the AP is cannot be contacted because of a firmware upgrade or if the AP is rebooted by the administrator.
- Send alarm notification when a Rogue Access Point is detected.
Notifications are also sent when the trust state of an AP changes.
To configure your notifications, select the Notification tab in Fireware Web UI or click Notification in Policy Manager. For more information on notifications, see Set Logging and Notification Preferences.
Reboot Schedule
You can reboot your APs at scheduled times on a daily or weekly basis. When you enable scheduled reboots, the APs managed by the Gateway Wireless Controller are rebooted at intervals 90 seconds apart so they are not restarted at the same time.
Rebooting an AP reloads the device configuration, restarts wireless interfaces, and automatically updates channel selection.
To configure scheduled reboots:
- Select the Automatically reboot AP Devices check box.
- Select Daily or a specific day of the week for a weekly restart.
- Set the time for the reboot in 24-hour format (hh:mm).
Configure MAC Access Control
In the MAC Access Control section, you can configure a list of denied or allowed MAC addresses for your APs.
For more information, see Configure MAC Access Control.
