Manage Fault Reports

After you enable your Firebox to send Fault Reports to WatchGuard, and your Firebox has generated Fault Reports from the fault events that occurred on your Firebox, you can review the list of Fault Reports, manually send reports to WatchGuard, and remove Fault Reports from your Firebox. To send or delete Fault Reports from Fireware Web UI, you must be logged in to the Firebox with a user account that has Device Administrator privileges.

For instructions to enable your Firebox to automatically send Fault Reports to WatchGuard, see Define Firebox Global Settings.

For each report in the Fault Reports list, you can see these details:

  • The category where the fault occurred
  • The subcategory where the fault occurred
  • The date and time the fault occurred, in UTC time
  • Whether the Fault Report has been sent to WatchGuard

Some examples of the fault reports that your Firebox can generate include:

  • UserSpace Crash
  • Kernel Crash
  • Upgrade Failure

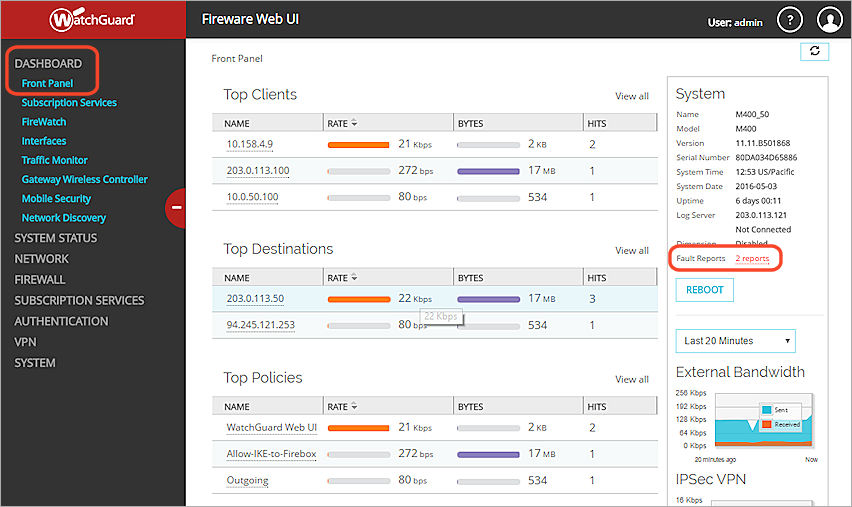

If Fault Reports are available for your Firebox, in Fireware Web UI, the number of available reports appears on the DASHBOARD > Front Panel page.

Screen shot of Fault Reports location on the Dashboard > Front Panel page

To go directly to the Diagnostics page to review the Fault Reports, click the red reports link.

For Fireboxes that are FireCluster members, you must directly connect to each cluster member to review or manage the Fault Reports for that Firebox. You can only send Fault Reports to WatchGuard from the cluster master. For more information about how to view FireCluster members in Firebox System Manager, see Connect to a Cluster Member.

To review and manage the Fault Reports on your Firebox, from Fireware Web UI:Closed
  1. On the DASHBOARD > Front Panel page in the Status section, adjacent to Fault Reports, click the red reports link.
    Or, select System Status > Diagnostics.

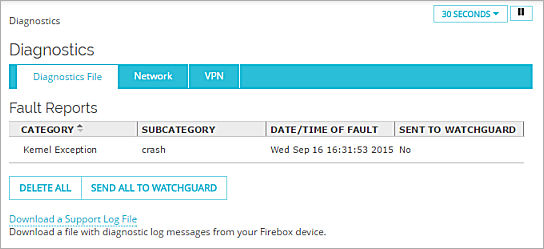

    The Diagnostics File page appears, with the most recent Fault Reports for your Firebox.

  1. To manually send the Fault Reports to WatchGuard, click Send All to WatchGuard.
  2. To remove all available Fault Reports from your Firebox, click Delete All.
To review and manage the Fault Reports on your Firebox, from Firebox System Manager:Closed
  1. Start Firebox System Manager.
  2. Select the Status Report tab.
  3. Click Support.
    The Support Files dialog box appears.

Screen shot of the Support Logs dialog box

  1. To see the current Fault Reports available for your Firebox, click Refresh.
    The Fault Reports list is updated with the most recent Fault Reports for your device.
  2. To manually send the Fault Reports to WatchGuard, click Send All to WatchGuard.
    The Delete Fault Reports dialog box appears.
  3. To remove all available Fault Reports from your Firebox, click Delete All.
    The Delete Fault Reports dialog box appears.
  4. To remove fault information from your Firebox, in the Save Support Log section, click Clear.
  5. If the Delete Fault Reports dialog box appears, specify the user credentials for a user account with Device Administrator privileges. Click OK.
