Set the Diagnostic Log Level

You can select the level of diagnostic logging that appears in the log messages generated by your Firebox. The available levels, from lowest to highest are:

  • Off — No diagnostic log messages are sent for this category.
  • Error — (Default setting) This level includes log messages for serious errors that cause a service or process on the Firebox to terminate.
  • Warning — This level includes details of abnormal conditions that help to explain behavioral process issues, as well as the information from the Error level.
  • Information — This level includes details of successful operation for log messages, as well as the information from the Error and Warning levels.
  • Debug — This level includes detailed log messages for all log levels. Use only with direction from a WatchGuard technical support representative.

WatchGuard does not recommend that you select the highest logging level (Debug) unless a technical support representative directs you to do so while you troubleshoot a problem. When you use the highest diagnostic log level, the log file can fill up very quickly and performance of the Firebox can be reduced.

For more information about how to review log messages in Traffic Monitor, from Fireware Web UI, see Traffic Monitor.

For more information about how to review log messages in Traffic Monitor, from Firebox System Manager, see Device Log Messages (Traffic Monitor).

To set the diagnostic log level, from Fireware Web UI:Closed
  1. Select System > Diagnostic Log.
    The Diagnostic Log Level page appears.

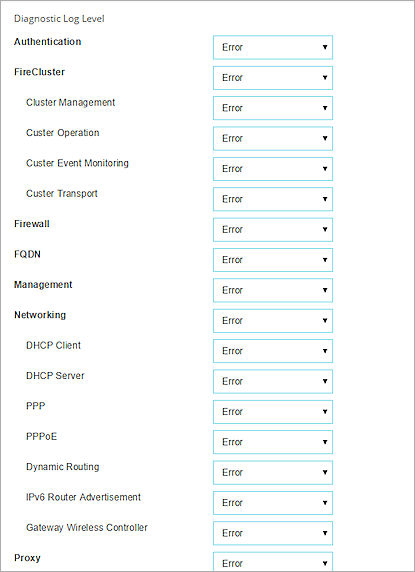

Screen shot of the Diagnostic Log Level page

  1. From the drop-down list for each category, select the level of detail to include in the log message for that category:
  1. Click Save.
To set the diagnostic log level from Policy Manager:Closed
  1. Select Setup > Logging.
    The Logging Setup dialog box appears.

screen shot of the Logging Setup dialog box

  1. Click Diagnostic Log Level.
    The Diagnostic Log Level dialog box appears.

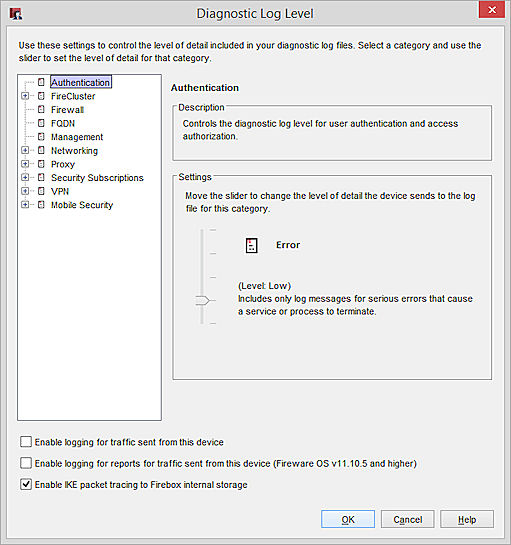

Screen shot of the Diagnostic Log Level dialog box

  1. Select a category from the list.
    A description of the category appears in the Description box.
  2. Use the Settings slider to select the level of detail to include in the log message for each category.
  1. To send log messages about traffic the Firebox sends, select the Enable logging for traffic sent from this device check box.
  2. To send log messages about traffic the Firebox sends, that can be used to generate reports, select the Enable logging for reports for traffic sent from this device check box. Tip!This option is only available if your Firebox runs Fireware OS v11.10.5 and higher
  3. To enable the Firebox to collect a packet trace for IKE packets, select the Enable IKE packet tracing to Firebox internal storage check box.
  4. Click OK to save your changes.
    The Diagnostic Log Level dialog box closes and the Logging Settings dialog box appears.
