Connect from an L2TP VPN Client
When you start an L2TP connection from any L2TP client, you must provide a user name and password.
The user name and password must match the name and password of a user on the authentication server specified in the Mobile VPN with L2TP configuration. If you enable multiple authentication servers in the Mobile VPN with L2TP configuration on the Firebox, users who do not use the default authentication server must specify the authentication server. The user can specify the non-default authentication server as part of the user name, or as the Domain.
The user name must be in one of these formats:
Use the default authentication server

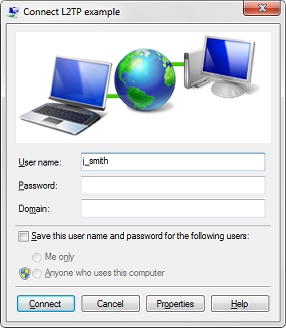

In the User name text box, type just the user name.
Example: j_smith
Use a non-default authentication server
In the User name text box, type <authentication server>\<user name>.
For example, if RADIUS is the non-default server: radius\j_smith
For example, if Firebox-DB is the non-default authentication server: Firebox-DB\j_smith
Alternatively, the user can type the authentication server (radius or Firebox-DB) in the Domain text box instead of as part of the user name.
