Mixed Routing Mode

In mixed routing mode, also known as a Routed configuration, you can configure your Firebox to send network traffic between many different types of physical and virtual network interfaces. Mixed routing mode is the default network mode. While most network and security features are available in this mode, you must carefully check the configuration of each device connected to your Firebox to make sure that your network operates correctly.

A basic network configuration in mixed routing mode uses at least two interfaces. For example, you can connect an external interface to a cable modem or other Internet connection, and a trusted interface to an internal router that connects internal members of your organization. From that basic configuration, you can add an optional network that protects servers but allows greater access from external networks, configure VLANs, and other advanced features, or set additional options for security like MAC address restrictions. You can also define how network traffic is sent between interfaces.

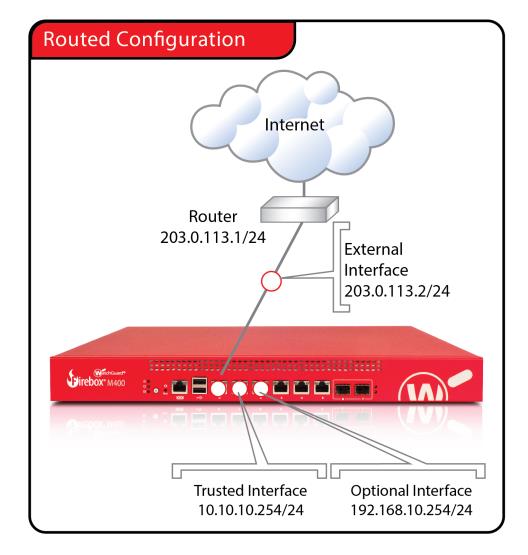

Diagram of a Firebox in mixed routing mode

To get started on interface configuration in mixed routing mode, see Common Interface Settings.

It is easy to forget IP addresses and connection points on your network in mixed routing mode, especially if you use VLANs (Virtual Local Area Networks), secondary networks, and other advanced features. We recommend that you record basic information about your network and VPN configuration in the event that you need to contact technical support. This information can help your technician resolve your problem quickly. For guidelines about what information to have ready before you call WatchGuard for support, see Working with WatchGuard Customer Support.
