Manage Users and Roles on Your Firebox

You can enable more than one user with Device Administrator, Device Monitor, or Guest Administrator privileges to connect to your Firebox at the same time. If you have enabled this feature and are connected to your Firebox with Device Administrator credentials in Fireware Web UI, before you can change the configuration settings in the Firebox device configuration file, you must unlock the configuration file.

For more information about:

• How to enable more than one user with administrator privileges to log in to your Firebox at the same time, see Define Firebox Global Settings.
• How to unlock the configuration file to make changes, see the Lock and Unlock a Configuration File section.
• The predefined roles available on your Firebox, see About Predefined Roles.
• How to manage Guest Administrator user accounts, see Configure Hotspot Settings.

In Fireware v12.0.1 or higher, you can enable the Support Access option, which creates a temporary, read-only user account on your Firebox for connections from WatchGuard Support. For more information, see Enable Support Access.

When you add new Device Management users to your Firebox, the account information for the users is stored in a separate file from the device configuration file. This means that if you must restore an earlier version of your configuration file to your Firebox, the user accounts you added are not affected. If you restore the factory-default settings for your Firebox, however, all the Device Management user accounts you added are removed; only the default user accounts are available, with the default passphrases restored.

You can use these authentication servers for Device Management user accounts on your Firebox:

• Firebox-DB
• Active Directory
• LDAP
• RADIUS

For external, third-party authentication servers (not Firebox-DB), make sure to add the user account to the authentication server before you add the user account to your Firebox. The user account credentials that you specify for a user account on your Firebox are case-sensitive and must match the user credentials as they are specified on the third-party authentication server.

You can add a user account with the Device Administrator or Device Monitor role. To add a user account from an external, third-party authentication server (not Firebox-DB), you must have already configured the settings on the Firebox for that authentication server. You must also make sure that the user account already exists on the authentication server. You must only specify a passphrase for the user accounts that use the Firebox-DB authentication server. When you add a user account from an external authentication server (such as your Active Directory server), the password specified for that user account in the authentication server settings is used when the user logs in to the Firebox.

To add a new device user account, from Fireware Web UI:

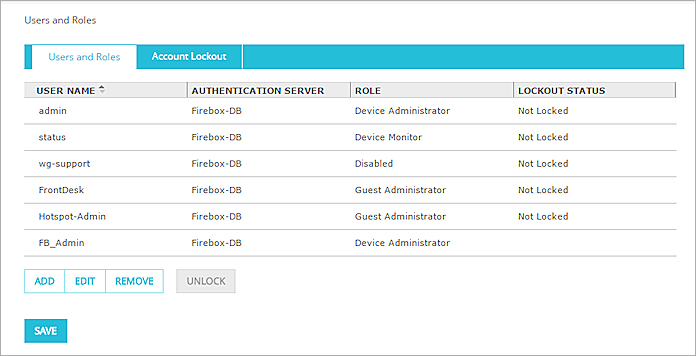

1. Select System > Users and Roles.
   The Users and Roles page appears.

2. Click Add.

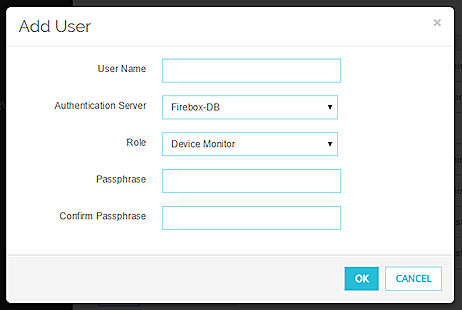

   The Add User dialog box appears.

3. In the User Name text box, type the user name for the user account.
4. From the Authentication Server drop-down list, select the authentication server for this user account.
5. From the Role drop-down list, select the role for this user account.
6. (Firebox-DB only) In the Passphrase and Confirm Passphrase text boxes, type the passphrase for this user account.
7. Click OK.
   The user account appears in the Users and Roles list.
8. Click Save.

To add a new device user account, from Policy Manager:

1. Select File > Manage Users and Roles.
   The Login dialog box appears.

2. In the Administrator User Name and Administrator Passphrase text boxes, type the credentials for a user account with Device Administrator privileges.
3. From the Authentication Server drop-down list, select the correct authentication server for the user account you specified.
4. Click OK.

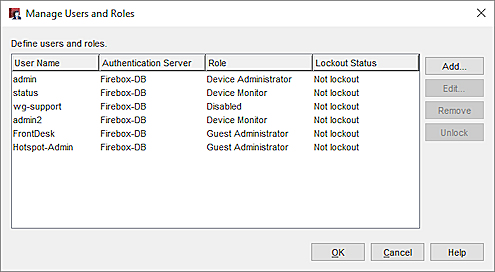

   The Manage Users and Roles dialog box appears.

5. Click Add.

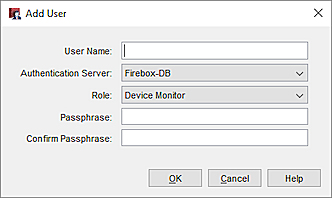

   The Add User dialog box appears.

6. In the User Name text box, type the user name for the user account.
7. From the Authentication Server drop-down list, select the authentication server for this user account.
8. From the Role drop-down list, select the role for this user account.
9. (Firebox-DB only) In the Passphrase and Confirm Passphrase text boxes, type the passphrase for this user account.
10. Click OK.
    The user account appears in the Manage Users and Roles list.

To add a new device user account, from Firebox System Manager:

1. Select Tools> Manage Users and Roles.
   The Manage Users and Roles login dialog box appears.

2. In the User Name and Passphrase text boxes, type the credentials for a user account with Device Administrator privileges.
3. From the Authentication Server drop-down list, select the correct authentication server for the user account you specified.
4. If you selected an Active Directory server, in the Domain text box, type the domain name for your Active Directory server.
5. Click OK.
   The Manage Users and Roles dialog box appears.

6. Click Add.
   The Add User dialog box appears.

7. In the User Name text box, type the user name for the user account.
8. From the Authentication Server drop-down list, select the authentication server for this user account.
9. From the Role drop-down list, select the role for this user account.
10. (Firebox-DB only) In the Passphrase and Confirm Passphrase text boxes, type the passphrase for this user account.
11. Click OK.
    The user account appears in the Manage Users and Roles list.

When you edit a user account that you created on your Firebox, you cannot change the user name or the authentication server setting. The other settings that you can change depend on the authentication server you specified for the user account. For user accounts from any external, third-party authentication server, you can change the role assigned to the user account and the passphrase. For users you defined in the Firebox-DB authentication server, you can change only the passphrase.

To change the user name or the authentication server specified for a user account, you must remove the user from the Manage Users and Roles list and then add the user account again with the correct settings.

For the built-in admin and status user accounts, you can only change the passphrase. For the wg-support user account, you can change the role and the passphrase.

To change the role or passphrase for a user account, from Fireware Web UI:

1. From the Users and Roles list, select a user account.
2. Click Edit.
   The Edit User dialog box appears.
3. Select a different role or specify a new passphrase.
4. Click OK.
5. Click Save.

To change the role or passphrase for a user account, from Policy Manager or Firebox System Manager:

1. From the Manage Users and Roles list, select a user account.
2. Click Edit.
   The Edit User dialog box appears.
3. Select a different role or specify a new passphrase.
4. Click OK.

You can only delete the user accounts that you create on your Firebox. The default, built-in user accounts (admin, status, and wg-support) cannot be deleted.

To delete a user account, from Fireware Web UI:

1. From the Users and Roles list, select a user account.
2. Click Remove.
   A confirmation message appears.
3. Click Yes.
   The user is deleted from the Users and Roles list.
4. Click Save.

To delete a user account, from Policy Manager or Firebox System Manager:

1. From the Manage Users and Roles list, select a user account.
2. Click Remove.
   A confirmation message appears.
3. Click Yes.
   The user is deleted from the Manage Users and Roles list.

You can enable Account Lockout to prevent brute force attempts to guess user account passphrases. When Account Lockout is enabled, the Firebox temporarily locks a user account after a specified number of consecutive, unsuccessful login attempts, and permanently locks a user account after a specified number of temporary account lockouts. A permanently locked user account can be unlocked only by a user with Device Administrator credentials.

The default admin user account can be temporarily locked but cannot be permanently locked.

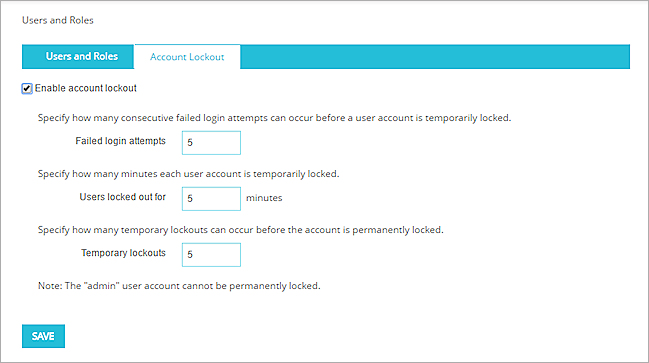

To configure Account Lockout settings for Device Management user accounts, from Fireware Web UI:

1. Select System > Users and Roles.
   The Users and Roles page appears.
2. Select the Account Lockout tab.
3. Select the Enable account lockout check box.

4. In the Failed login attempts text box, type the number of consecutive failed login attempts that can occur before a user account is temporarily locked.
5. In the Users locked out for text box, type the number of minutes that a temporarily locked account remains locked.
6. In the Temporary lockouts text box, type the number of temporary lockouts can occur before an account is permanently locked. Tip!The default "admin" user account cannot be permanently locked.
7. Click Save.

To configure Account Lockout settings for Device Management user accounts, from Policy Manager:

1. Select Setup > Authentication > Authentication Settings.
2. In the Management Session section, click Account Lockout.

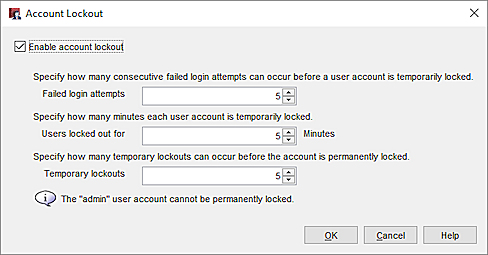

   The Account Lockout dialog box appears.

3. Select the Enable account lockout check box.
4. In the Failed login attempts text box, type the number of consecutive failed login attempts that can occur before a user account is temporarily locked.
5. In the Users locked out for text box, type the number of minutes that a temporarily locked account remains locked.
6. In the Temporary lockouts text box, type the number of temporary lockouts can occur before an account is permanently locked. Tip!The default "admin" user account cannot be permanently locked.
7. Click OK.

If Account Lockout is enabled for Device Management user accounts, a Device Management user account can be temporarily or permanently locked after a specified number of failed login attempts. A user with the Device Administrator credentials can unlock a locked account.

To unlock a locked Device Management user account, from Fireware Web UI:

1. Select System > Users and Roles.
   The Users and Roles page appears, with the Users and Roles tab selected. The Lockout Status column shows whether an account is locked.
2. Select a locked account.
3. Click Unlock.
   A confirmation message appears.
4. Click Yes.

To unlock a locked user account, from Policy Manager:

1. From the Users and Roles page, select a locked account.
   On the Users and Roles tab, the Lockout Status column indicates whether an account is locked.
2. Click Unlock.
   A confirmation message appears.
3. Click Yes.

You can also unlock a user account from the Authentication List tab in Firebox System Manager. For more information, see Authenticated Users (Authentication List).

(Fireware Web UI Only)

When you enable more than one Device Administrator to connect to your Firebox at the same time, in Fireware Web UI, before a Device Administrator can change the configuration settings in the Firebox device configuration file, that user must unlock the configuration file. When the configuration file is unlocked by a Device Administrator to make changes, the configuration file is locked for all other users with Device Administrator credentials, until the Device Administrator who unlocked the configuration file either locks the configuration file again or logs out.

For information about how to enable more than one Device Administrator to log in to your Firebox at the same time, see Define Firebox Global Settings.

To unlock a configuration file, from Fireware Web UI:

At the top of the page, click .

To lock a configuration file, from Fireware Web UI:

At the top of the page, click .

To see which Device Management users have made changes to your Firebox, you can review an Audit Trail report. This report includes a detailed list of the audited configuration changes made to your Firebox.

Before you can see audit trail details in a report, you must configure your Firebox to send audit trail log messages to your WSM Log Server or your instance of Dimension. In the Logging settings for your Firebox, select the Send log messages when the configuration for this Firebox is changed check box.

For more information about:

• How to configure your Firebox to generate audit trail log messages from Policy Manager, see Define Where the Firebox Sends Log Messages (WSM).
• How to configure your Firebox to generate audit trail log messages from Fireware Web UI, see Configure Logging Settings & Performance Statistics.
• How to generate an Audit Trail report in Report Manager, see View Reports in Report Manager.
• How to view an Audit Trail report in Dimension, see View Reports.
