Processes
To see a list of processes that run on the Firebox:
- Connect to Fireware Web UI for your Firebox.
- Select System Status > Processes.

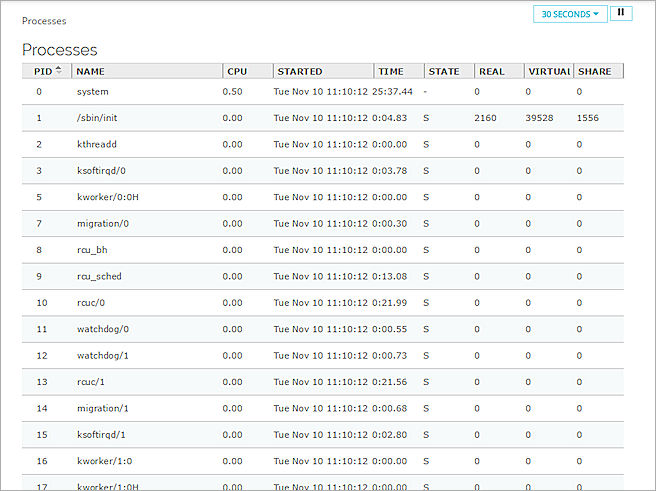

The Processes page appears.
The Processes page includes information about all processes that run on the Firebox.
PID
The Process ID is a unique number that shows when the process started,
Name
The name of the process.
CPU
The percentage of CPU time the process has used after the last device reboot.
Started
The day of the week, date, and time that the process started.
Time
The amount of time that the process has used since the last time the Firebox was started.
State
The state of the process:
R — Running
S — Sleeping
D,Z — Inactive
Real
The total number of kilobytes of physical memory the process uses.
Virtual
The total number of kilobytes of virtual memory the process uses.
Share
The total number of kilobytes of shared memory the process uses.
For more information about the System Status pages, see Monitor your Firebox with Fireware Web UI.
