Firebox Web UI Integration with Microsoft Entra ID Users

This document describes how to set up Microsoft Entra ID authentication for Device Management users that log in to Fireware Web UI.

• Firebox Web UI Integration with Microsoft Entra ID Users
• • Integration Summary
  • Topology
  • Before You Begin
  • Configure Microsoft Azure
  • • Configure Secure LDAP
    • Configure a Security Rule in Microsoft Azure
    • Add a Microsoft Entra ID Group and User
  • Configure the Firebox
  • Test the Integration

Topology

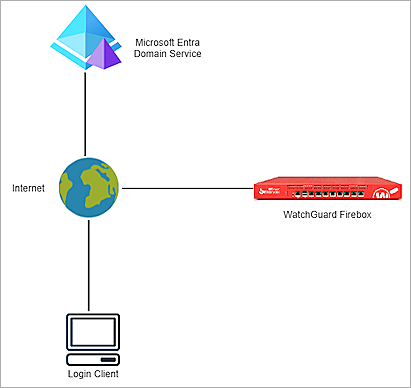

This topology diagram shows the data flow for Microsoft Entra ID authentication with a WatchGuard Firebox and Microsoft Entra Domain Services.

Before You Begin

Before you begin these procedures, make sure that:

• You have a Microsoft Azure global administrator account within the Microsoft Entra ID tenant.
• You have an active Microsoft Azure subscription.
• You have created and configured a Microsoft Entra Domain Services managed domain.

Additional charges might apply for the use of Microsoft Azure. To learn more about Microsoft Azure, go to What is Microsoft Entra Domain Services.

Configure Microsoft Azure

To configure a Microsoft Entra Domain Services managed domain, complete these steps:

1. Configure Secure LDAP
2. Configure a Security Rule in Microsoft Azure
3. Add a Microsoft Entra ID Group and User

Configure Secure LDAP

To configure Secure LDAP:

1. Log in to the Microsoft Azure portal with your Microsoft Azure account credentials.
2. Click Resource Groups.
3. Select your Microsoft Entra Domain Services resource group. The resource group is connected with the Microsoft Entra Domain Services managed domain you created.
4. From the Resources list, click a resource with the Microsoft Entra Domain Services resource type.
   The Microsoft Entra Domain Services page opens for the domain name you created.


5. Select Settings > Secure LDAP.
   The Secure LDAP settings page opens.

6. Enable the Secure LDAP toggle.
7. Enable the Allow Secure LDAP Access Over the Internet toggle.
8. Next to the .PFX File with Secure LDAP Certificate text box, click the folder icon and upload your certificate. For information about how to create and export the certificate, go to Configure Secure LDAP in the Microsoft documentation.
9. In the Password To Decrypt .PFX File text box, type the password.

10. Click Save. It might take some time to save the changes.
    The status of the Secure LDAP parameter changes to Enabled.

11. Select Properties.
    The Properties page opens.

12. Copy the value of the Secure LDAP External IP Addresses parameter. You need this information when you configure the Firebox.

Configure a Security Rule in Microsoft Azure

To configure a security rule in Microsoft Azure:

1. In the Microsoft Azure portal, click Resource Groups.
2. Select your Microsoft Entra Domain Services resource group.
   The Resource Group page opens.

3. From the Resources list, click a resource with the Network Security Group resource type.
   The Network Security Group page opens.
4. Select Settings > Inbound Security Rules > Add.
   The Add Inbound Security Rules page opens.

5. From the Source drop-down list, select IP Addresses.
6. In the Source IP Addresses/CIDR Ranges text box, type the public IP address or range for your environment.
7. From the Destination drop-down list, select Any.
8. From the Service drop-down list, select Custom.
9. In the Destination Port Ranges text box, type 636.
10. For Protocol, select TCP.
11. In the Priority text box, type a number from 100 through 4096. In our example, we type 311.
12. In the Name text box, type a name.
13. Keep the default values for all other settings.
14. Click Add.
    The new security rule saves in Microsoft Azure.

Add a Microsoft Entra ID Group and User

To add a Microsoft Entra ID group and user:

1. On the Microsoft Azure Home page, in the search box, type Microsoft Entra ID.
2. Select Microsoft Entra ID.
3. Select Manage > Groups.
4. Click + New Group.
   The New Group page opens.

5. From the Group type drop-down list, select Security.
6. In the Group Name text box, type a group name.
7. From the Membership Type drop-down list, select Assigned.
8. Click Create.
9. To add a user, select Manage > Users.
10. Click + New user.
    The Create New User page opens.

11. Enter the user details.

    The user you create must be a member of the Microsoft Entra ID group that you created.

12. Click Create.

For cloud-only user accounts, users must change their passwords before they can use Microsoft Entra Domain Services. The password change process generates the password hashes for Kerberos and NTLM authentication and stores them in Microsoft Entra ID. The account is not synced from Microsoft Entra ID to Microsoft Entra Domain Service until the user changes the password. It might take a few minutes after the password change before the new password can be used in Microsoft Domain Services.

Configure the Firebox

To configure the Firebox, from Fireware Web UI:

1. Log in to Fireware Web UI (https://<your Firebox IP address>:8080).
2. Select Authentication > Servers.
   The Authentication Servers page opens.

3. From the Authentication Servers list, click Active Directory.
   The Active Directory page opens.
4. Click Add.
5. Click Next.
   The Domain Name page opens.

6. In the Domain Name text box, type the domain name for this Active Directory server. You cannot change the domain name after you save the settings.
7. Click Next.
   The Active Directory Server page opens.

8. In the Server Address text box, type or paste the secure LDAP external IP address that you copied in the previous section.
9. Select the Enable Secure SSL Connections to Your Active Directory Server (LDAPS) check box.
10. Click Next.
11. Click Finish.
12. Select System > Users and Roles.
    The Users and Roles settings page opens.

13. From the Users and Roles tab, click Add.
    The Add User page opens.

14. In the User Name text box, type a name. The name of the user must match the name of the Microsoft Entra ID user.
15. From the Authentication Server drop-down list, select the authentication server you configured. In this example, we select ecocdc.solutions.
16. From the Role drop-down list, select the role for this user account.
17. Click OK.
18. Click Save.

Test the Integration

To test the integration of Microsoft Entra ID Users and the WatchGuard Firebox Web UI.

1. In a web browser, navigate to Fireware Web UI (https://<your Firebox IP address>:8080).
2. Type your Microsoft Entra ID user name and password.
3. From the Authentication Server drop-down list, select the authentication server you created. In our example, we select ecocdc.solutions.
4. Click Log In.
   You are logged in successfully.
