Configure the Round-Robin Multi-WAN Method

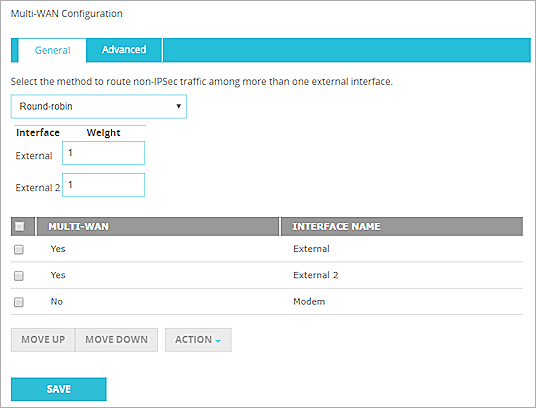

1. Select Network > Multi-WAN.
2. From the Multi-WAN Mode drop-down list, select Round-robin.

3. You can modify the weight associated with each interface. Choose an interface, then type or select a new value in the adjacent Weight field. The default value is 1 for each interface.

For information on interface weight, go to Find How to Assign Weights to Interfaces.

4. To assign an interface to the multi-WAN configuration, select an interface and click Action > Join Multi-WAN.
5. To complete your configuration, you must add link monitor information as described in Configure Link Monitor.

For information on advanced multi-WAN configuration options, go to Advanced Multi-WAN Settings.

6. Click Save.

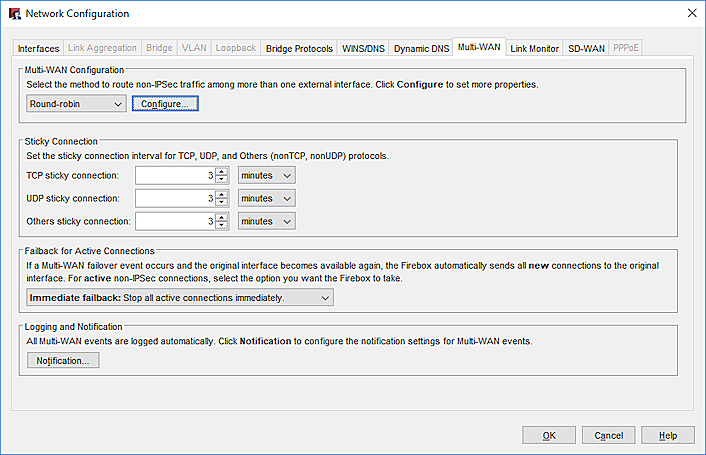

1. Select Network > Configuration.
2. Click the Multi-WAN tab.
3. In the Multi-WAN Configuration section drop-down list, select Round-robin.

4. Click Configure.

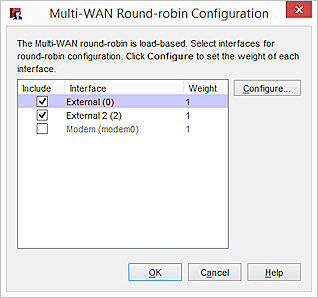

5. In the Include column, select the check box for each interface you want to use in the round-robin configuration. It is not necessary to include all external interfaces in your round-robin configuration.

For example, you may have one interface that you want to use for SD-WAN routing that you do not want to include in your round-robin configuration.

6. If you want to change the weights assigned to one or more interfaces, click Configure.
7. Click the value control to set an interface weight. The weight of an interface sets the percentage of load through the Firebox that will use that interface.
8. Click OK.

For information on changing the weight, go to Find How to Assign Weights to Interfaces.

9. To complete your configuration, you must add link monitor information as described in Configure Link Monitor.

For information on advanced multi-WAN configuration options, see Advanced Multi-WAN Settings.

10. Click OK.
