Use the WatchGuard L2TP Setup Wizard

1. Select VPN > Mobile VPN with L2TP.

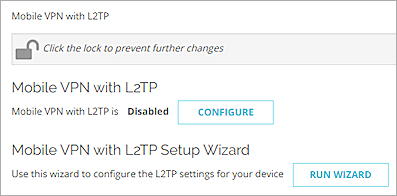

   The Mobile VPN with L2TP page appears.

2. Click Run Wizard.
   The WatchGuard L2TP Setup Wizard appears.
3. Click Next.

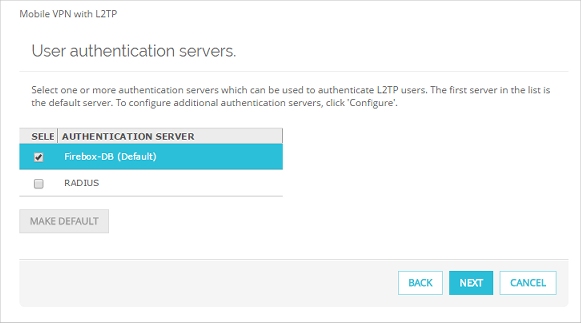

   A list of configured authentication servers appears.

4. Select the check box for each authentication server you want to use for Mobile VPN with L2TP user authentication. You can use the internal Firebox database (Firebox-DB) or a RADIUS server if you have configured one.
   For more information about user authentication methods for L2TP, see About L2TP User Authentication.
5. If you selected more than one authentication server, select the server you want to be the default server. Click Make Default to move that server to the top of the list.
   If users do not specify the authentication server as part of the user name when they authentication from an L2TP client, Mobile VPN with L2TP uses the default authentication server.

If you select more than one authentication server, users who use the non-default authentication server must specify the authentication server or domain as part of the user name. For more information and examples, see Connect from an L2TP VPN Client .

6. Click Next.
   The Authentication Users and Groups page appears. The L2TP-Users group is automatically added by default.

7. Click Add to add a user or group to authenticate with Mobile VPN with L2TP.
   The Add Authentication User or Group dialog box appears.

If you use the Firebox-DB for authentication you must use the L2TP-Users group that is created by default. You can add the names of other groups and users that use Mobile VPN with L2TP. For each group or user you add, you can select the authentication server where the group exists, or select Any if that group exists on more than one authentication server. The group or user name you add must exist on the authentication server. The group and user names are case sensitive and must exactly match the name on your authentication server.

• Set the Type to Group or User.
• In the Name text box, type the name of the group or user.
• From the Authentication Server drop-down list, select the authentication server where the user or group exists. Or, select Any if the group can be used with all selected authentication servers.
• Click OK.

8. After you configure users and groups, click Next.
   The Virtual IP Address Pool page appears.
9. Click Add.
   The Add Address Pool dialog box appears.

10. In the Choose Type drop-down list, select whether to add an IPv4 host address, network address, or address range. You must add at least two IP addresses to the virtual IP address pool. Type the IP address or range and click OK.
    The address is added to the virtual IP address pool.

For more information about virtual IP address pools, see Virtual IP Addresses and Mobile VPNs.

11. After you define the virtual IP address pool, click Next.
    The Tunnel authentication method page appears.

12. Select an option for IPSec tunnel authentication. There are two options:

Use Pre-Shared Key

Type or paste the shared key. You must use the same pre-shared key in the IPSec settings on the L2TP client.

Use IPSec Firebox Certificate

Select the certificate to use from the table. You must have already imported a certificate to the Firebox to use this option.

To use certificates for authentication, you must install the certificate on all devices that connect.

For more information, see Certificates for Mobile VPN with L2TP Tunnel Authentication.

13. Click Next.
14. Click Finish to save the configuration and exit the wizard.

1. Select VPN > Mobile VPN > L2TP > Activate.
   The WatchGuard L2TP Setup Wizard appears.
2. Click Next.
   A list of configured authentication servers appears.

3. Select the check box for each authentication server you want to use for Mobile VPN with L2TP user authentication. You can use the internal Firebox database (Firebox-DB) or a RADIUS server if you have configured one.
   For more information about user authentication methods for L2TP, see About L2TP User Authentication

4. If you selected more than one authentication server, select the server you want to be the default server. Click Make Default to move that server to the top of the list.
   If users do not specify the authentication server as part of the user name when they authentication from an L2TP client, Mobile VPN with L2TP uses the default authentication server.

If you select more than one authentication server, users who use the non-default authentication server must specify the authentication server or domain as part of the user name. For more information and examples, see Connect from an L2TP VPN Client .

5. After you have selected authentication servers, click Next.

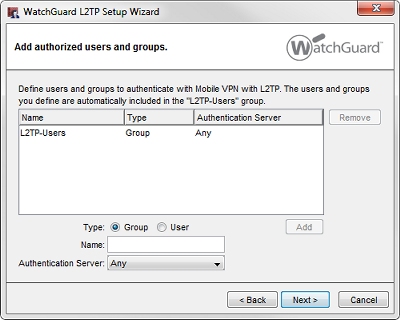

   The Add authorized users and groups page appears. The L2TP-Users group is automatically added by default.

6. Add users and groups to authenticate with Mobile VPN with L2TP.

If you use the Firebox-DB for authentication you must use the L2TP-Users group that is created by default. You can add the names of other groups and users that use Mobile VPN with L2TP. For each group or user you add, you can select the authentication server where the group exists, or select Any if that group exists on more than one authentication server. The group or user name you add must exist on the authentication server. The group and user names are case sensitive and must exactly match the name on your authentication server.

• Set the Type to Group or User.
• In the Name text box, type the name of the group or user.
• From the Authentication Server drop-down list, select the authentication server where the user or group exists. Or, select All if the group can be used with all selected authentication servers.
• Click Add.

7. After you configure users and groups, click Next.
   The Configure the allowed resources page appears.

The allowed resources determine what the wizard puts in the To section of the automatically generated Allow L2TP-Users policy. Unless you restrict access to specific resources, the Allow L2TP-Users policy allows access to Any.

8. To limit access, select Restrict access to the resources specified below.
9. Click Add to add network IP address ranges, aliases, or other resources you want Mobile VPN with L2TP users to have access to.
10. After you have configured the allowed resources, click Next.
    The Define the virtual IP address pool page appears.

11. Click Add to add an IPv4 host address, network address, or address range. You must add at least two IP addresses to the virtual IP address pool.

For more information about virtual IP address pools, see Virtual IP Addresses and Mobile VPNs.

12. After you define the virtual IP address pool, click Next.
    The Select the tunnel authentication method page appears.

13. Select an option for IPSec tunnel authentication. There are two options:

Use Pre-Shared Key

Type or paste the shared key. You must use the same pre-shared key in the IPSec settings on the L2TP client.

Use IPSec Certificate

Select the certificate to use from the table. You must have already imported a certificate to the Firebox to use this option.

For more information, see Certificates for Mobile VPN with L2TP Tunnel Authentication.

14. Click Next.
    The L2TP wizard is complete.
15. If you want to edit the L2TP configuration after the wizard is finished, select the Open the L2TP configuration dialog check box. Click Finish to close the wizard.
    Mobile VPN with L2TP is enabled, and the required L2TP policies are automatically added.
