About Multicast Routing

Multicast routing is a networking method for efficient distribution of one-to-many traffic. A multicast source, such as a live video conference, sends traffic in one stream to a multicast group. The multicast group contains receivers such as computers, devices, and IP phones.

Common uses include these technologies:

Voice over IP (VOIP)
Video on demand (VOD)
Video conferencing
IP television (IPTV)

When you enable multicast routing on your Firebox, the Firebox acts as a local multicast router. It forwards multicast traffic from the source to receivers on your network.

How It Works

Multicast routing uses the Protocol-Independent Multicast (PIM) protocol. There are different variants of this protocol. Your Firebox supports PIM Sparse Mode (PIM-SM) which is used when only a few devices subscribe to the multicast. These devices are multicast receivers. Receivers can be located anywhere in the world, on any network, and compose the multicast group logical group.

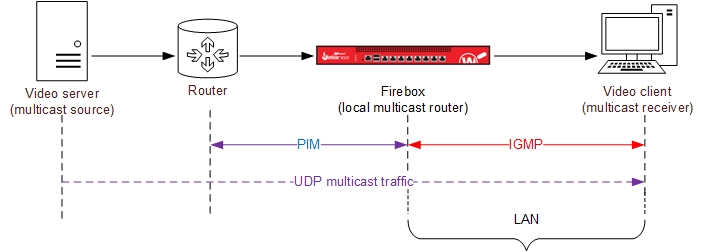

In this diagram, a server sends multicast traffic through a router and the Firebox. The Firebox forwards the multicast traffic to the multicast group on the local network.

Diagram of a Firebox between a multicast source and a multicast receiver

In PIM-SM mode, the central point in the multicast domain is the Rendezvous Point (RP). The RP is a router that receives multicast traffic destined for the multicast group. All multicast traffic must pass through the RP.

You must enable all Firebox interfaces as RP candidates that are involved in multicast routing, except those exposed to the multicast source or the receivers. When you enable the Firebox as an RP candidate, the Firebox periodically communicates its RP candidacy to the PIM-SM network. RP elections on the Firebox occur dynamically.

After you enable multicast routing, the alias Any-Multicast and two new policies are added to your configuration:

MR-PIM-Allow
MR-IGMP-Allow

In a multicast policy, you can specify only these options:

Incoming interfaces
Source IP addresses
Destination IP addresses
Protocols and ports

Multicast Routing Support

Multicast routing is supported only in Mixed Routing mode.

Interfaces

Multicast routing is supported for these Firebox interface types:

Physical
VLAN
Bridge
Link aggregation
Wireless
BOVPN virtual interface

You can enable multicast routing for up to 31 interfaces. IPv4 is supported. IPv6 is not supported.

Zones

Multicast routing is supported for these Firebox zones:

External
Trusted
Optional
Custom

FireCluster

You can enable multicast routing for an Active/Passive FireCluster.

Multicast Routing Protocols

The Firebox supports these multicast routing protocols:

PIM Sparse Mode (PIM-SM)
PIM Source-Specific Multicast (PIM-SSM)
IGMP v2 and v3

Examples

These diagrams shows example networks with Firebox interfaces configured as RP candidates. If a switch is located between the router and receivers, the switch must support IGMP snooping.

Example 1

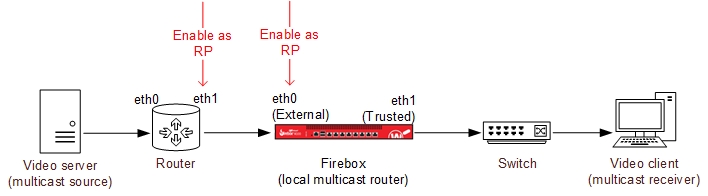

In this example, the local network has one Firebox configured for multicast routing. The external interface, eth0, is enabled as an RP candidate. On the router, the interface connected to the Firebox, eth1, is also enabled as an RP candidate.

Diagram of an example network configured for multicast routing (example 1)

Example 2

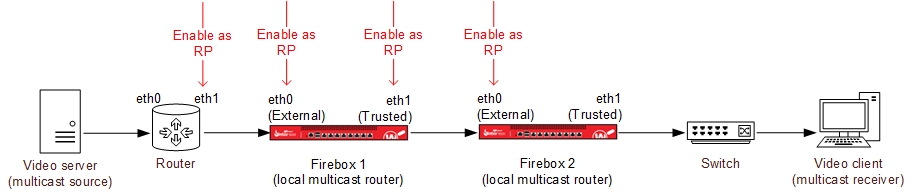

In this example, the local network has two Fireboxes configured for multicast routing. The external interfaces on both Fireboxes, eth0, are enabled as RP candidates. The trusted interface on Firebox 1 is also enabled as an RP candidate. On the router, the interface connected to the Firebox, eth1, is also enabled as an RP candidate.

Diagram of an example network configured for multicast routing

For detailed information about multicast routing, see RFC 5110. For detailed information about PIM-SM, see RFC 7761.
