Configure Intrusion Prevention

To use Intrusion Prevention Service (IPS), you must have a feature key to enable the service.

For more information, see:

IPS Scan Modes and Actions

IPS has two scan modes

  • Full Scan — Scan all packets for policies that have IPS enabled.
  • Fast Scan — Scan fewer packets to improve performance. This option greatly improves the throughput for scanned traffic, but does not provide the comprehensive coverage of Full Scan mode. This is the recommended scan mode for Firebox T10, T15, T30, T35, T50, T55, and all XTM models.

IPS categorizes IPS signatures into five threat levels, based on severity. For each threat level you can select one of these actions:

  • Allow — Allows the connection.
  • Drop — Denies the request and drops the connection. No information is sent to the source of the content.
  • Block — Denies the request, drops the connection, and adds the IP address of the content source to the Blocked Sites list. If the content that matches an IPS signature came from a client, the client IP address is added to the Blocked Sites list. If the content came from a server, the server IP address is added to the Blocked Sites list.

Enable and Configure IPS

If your Firebox has an active IPS subscription, the Web Setup Wizard and Quick Setup Wizard automatically enable IPS with recommended settings. For more information, see Setup Wizard Default Policies and Settings.

If IPS was not automatically enabled, you can enable it in Fireware Web UI or Policy Manager.

To use the IPS Setup Wizard to configure IPS Settings, in Fireware Web UI:Closed
  1. In Fireware Web UI, select Subscription Services > IPS.
    If IPS is licensed but not enabled, the IPS Setup Wizard starts automatically.
  2. Click Next to begin.
  3. Select the Scan Mode.
  4. For each threat level, from the Action drop-down list, select the action.
  5. For each threat level, to send a log message for an IPS action, select the Log check box.
  6. For each threat level, to trigger an alarm for an IPS action, select the Alarm check box.
  7. Click Next.
  8. Select the firewall policies that use IPS, then click Next.
  9. Click Finish.
To manually configure IPS settings in Fireware Web UI:Closed
  1. Select Subscription Services > IPS.
  2. If IPS is not enabled, click Skip to configure the settings manually.
  3. Select the Enable Intrusion Prevention check box.

Screen shot of the IPS page, Settings tab

  1. Select the Scan Mode. You can select one of two modes:
  2. For each threat level, from the Action drop-down list, select the action.
  3. For each threat level, to send a log message for an IPS action, select the Log check box.
  4. For each threat level, to trigger an alarm for an IPS action, select the Alarm check box.
  5. Click Save.
To manually configure IPS, in Policy Manager:Closed
  1. Select Subscription Services > Intrusion Prevention (IPS).
  2. Select the Enable Intrusion Prevention check box.

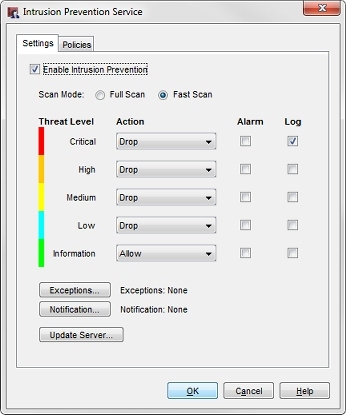

Screen shot of the Intrusion Prevention Service dialog box - Settings tab

  1. Select the Scan Mode.
  2. For each threat level, from the Action drop-down list, select the action.
  3. For each threat level, to send a log message for an IPS action, select the Log check box.
  4. For each threat level, to trigger an alarm for an IPS action, select the Alarm check box.
  5. Click OK.

If you enable IPS for an HTTPS proxy policy, you must also enable Content Inspection in the HTTPS proxy action, in order for IPS to scan the HTTPS content. For more information, see HTTPS-Proxy: Content Inspection. IPS scanning of HTTPS content is not supported on XTM 21, 22, and 23 devices.

Configure Other IPS Settings

Make sure that you enable automatic updates of IPS signatures to keep your signatures current.
