In the Hotspots configuration, select the Settings tab to configure the global settings that apply to all enabled hotspots.
You can configure a limit on the number of guest user accounts that Guest Administrators can add. This setting limits the combined total number of users that Guest Administrators can add for all hotspots.
You can configure timeout settings to limit the amount of time that users can continuously use your hotspot.
- If the Session timeout is set to 0 (the default value), guest users are not disconnected after a specified time interval.
- If the Idle timeout is set to 0, users are not disconnected if they do not send or receive traffic.
When the timeout period expires, the user is disconnected. When users are disconnected, they lose all Internet connectivity but are still connected to the network. The hotspot screen reappears and the users must accept the Terms and Conditions again before they can continue to use the hotspot.
When the Firebox reboots, users are disconnected from the hotspot. Before they can continue to use the hotspot, users must accept the Terms and Conditions again.

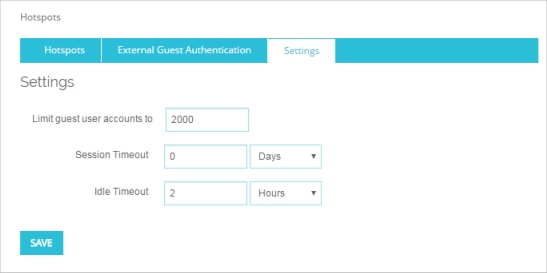

- Select Authentication > Hotspot.
The Hotspots page appears with the Hotspots tab selected. - Select the Settings tab.
- In the Limit guest user accounts to text box, type or select the maximum number of guest user accounts that a Guest Administrator can add on the Guest Administration Portal.
- In the Session timeout text box and drop-down list, type or select the maximum amount of time a user can remain continuously connected to your hotspot, and select the unit of time.
- In the Idle timeout text box and drop-down list, type or select the amount of time that a user must be idle for the connection to time out, and select the unit of time.

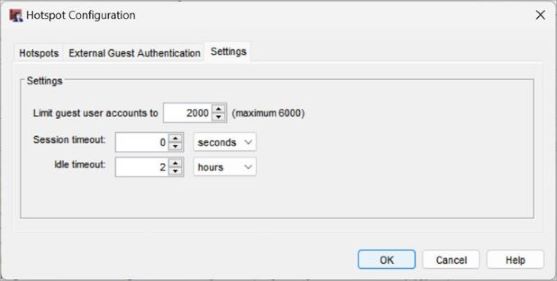

- Select Setup > Authentication > Hotspot.
The Hotspot Configuration dialog box appears, with the Hotspots tab selected. - Select the Settings tab.
- In the Limit guest user accounts to text box, type or select the maximum number of guest user accounts that a Guest Administrator can add on the Guest Administration Portal.
- In the Session timeout text box and drop-down list, type or select the maximum amount of time a user can remain continuously connected to your hotspot, and select the unit of time.
- In the Idle timeout text box and drop-down list, type or select the amount of time that a user must be idle for the connection to time out, and select the unit of time.
